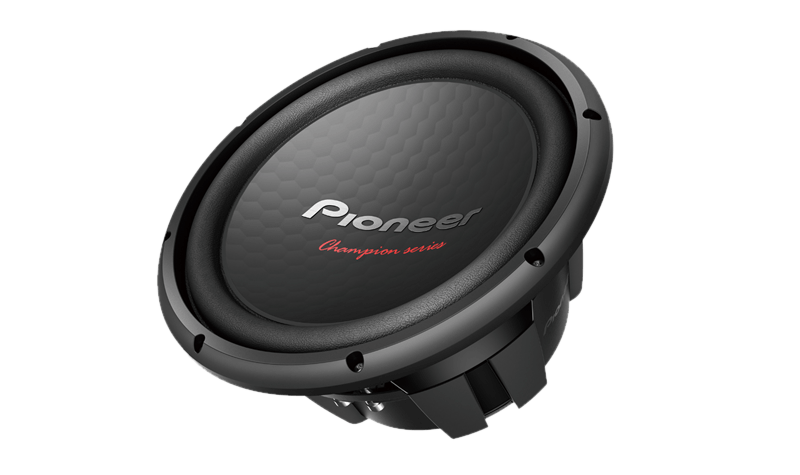

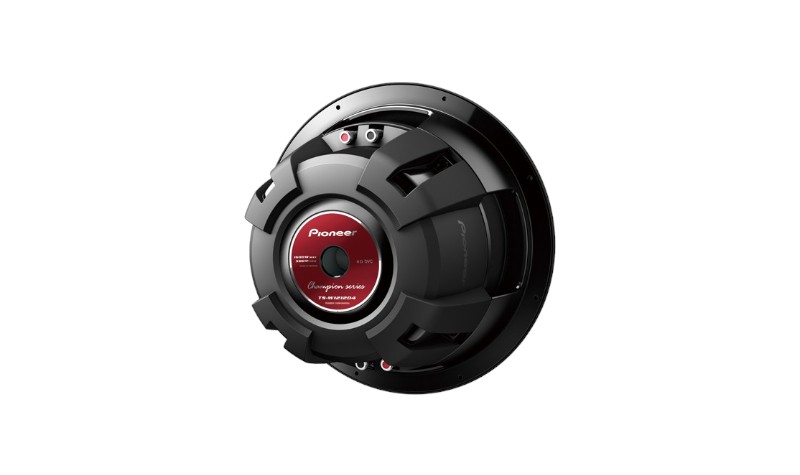

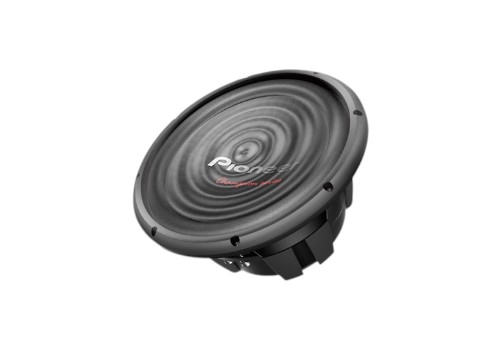

Pioneer Champion Series TS-W1212D4 12″ Subwoofer
The Pioneer TS-W1212D4 Champion Series Subwoofer is engineered for audio enthusiasts who demand powerful bass and reliable performance. Featuring a robust 12-inch woofer, dual voice coil design, and 1600W maximum power handling, this subwoofer delivers deep low frequencies with exceptional clarity and impact.

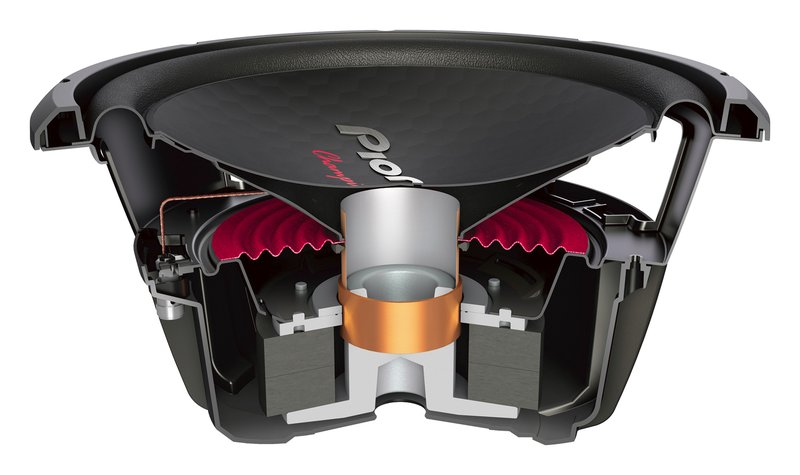

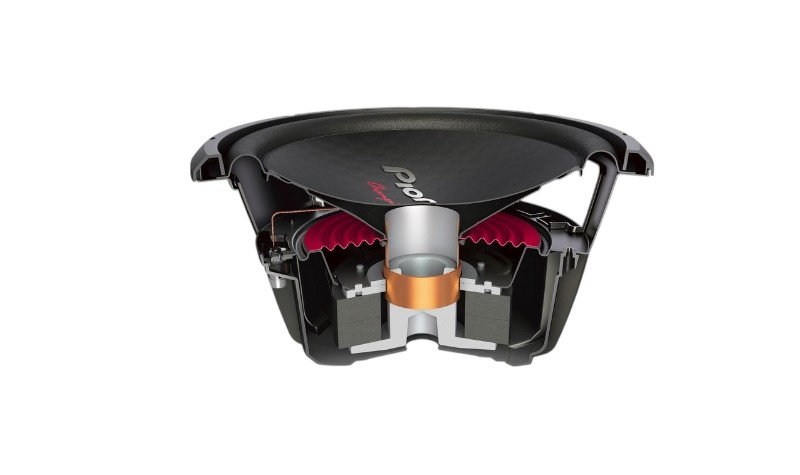

Built with Pioneer’s advanced cone technology and reinforced surround construction, the TS-W1212D4 is designed to perform under demanding conditions while maintaining consistent sound quality and durability.
Key Features
✔ 1600W Maximum Power Handling
✔ 500W RMS (Nominal) Power Output
✔ 12-Inch (30cm) High-Performance Woofer
✔ Dual Voice Coil (DVC) 4 Ohm Configuration
✔ Injection Molded Polypropylene Cone
✔ Dual Layer Fiber Reinforced Elastic Polymer Surround
✔ High Sensitivity Rating of 92 dB
✔ Silver Push Terminal Connections
✔ Designed for Enclosure Applications
Suitable For
• Car Audio Systems
• Tractor Sound Systems
• Trucks & Commercial Vehicles
• Bass-Focused Audio Setups
• Custom Sound Installations
Performance & Sound Quality
The TS-W1212D4 delivers powerful bass response across a frequency range of 20Hz to 1.6kHz. Its dual voice coil design offers installation flexibility while the reinforced surround and durable cone ensure excellent low-frequency performance, high reliability, and long service life.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Pioneer |
| Model | TS-W1212D4 |
| Series | Champion Series |
| Speaker Type | Subwoofer |
| Woofer Size | 12″ (30cm) |
| Maximum Power | 1600W |
| RMS Power | 500W |
| Impedance | Dual 4 Ohm Voice Coil |
| Sensitivity | 92 dB |
| Frequency Response | 20Hz – 1.6kHz |
| Cone Material | Injection Molded Polypropylene |
| Surround Material | Dual Layer Fiber Reinforced Elastic Polymer |
| Terminal Type | Silver Push Terminal |
| Mounting Depth | 157 mm |
| Cutout Diameter | 283 mm |
| Weight | 5.9 kg |
| Color | Black |
Package Includes
• 1 × Pioneer TS-W1212D4 Subwoofer
• Screw Assembly Kit
• Cushion
• User Manual
